- Unity 게임 개발 #3 - 풍선 지키기 게임<myShield>2023년 07월 28일 20시 17분 56초에 업로드 된 글입니다.작성자: noun06
유니티를 사용하여 개발한 풍선 지키기 게임입니다.
1. 기본 씬 세팅
- 배경, 풍선, 실드,시간 UI 생성 후 위치, 크기, 색상 설정.

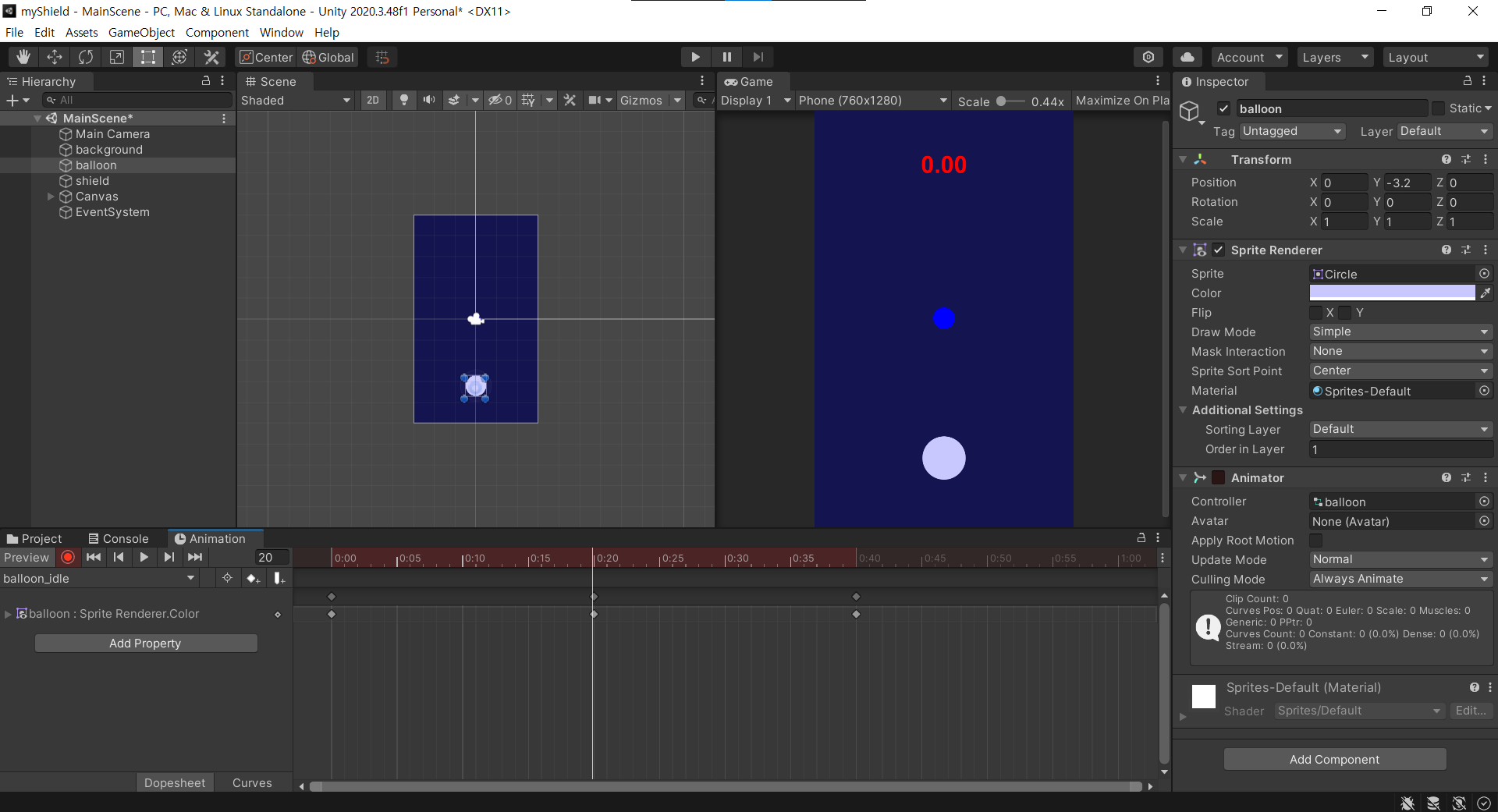

2. 애니메이션 세팅
- balloon_idle 풍선 기본 모션, loop time 체크.
- 레코드 후 초 마다 색상 변경하여 애니메이션 제작.
3. 마우스 포인터 따라 이동
- 플레이어인 shield의 마우스 포인터 이동 제어.
- mousePos(마우스의 좌표계)를 Camera.main 함수를 사용하여 카메라 좌표계로 변경 후 shield의 위치 넣기.
- ScreenToWorldPoint : 카메라가 비추고 있는 화면 내의 좌표값을 사용할 수 있게 해줌.
//shield.cs void Update() { Vector3 mousePos = Camera.main.ScreenToWorldPoint(Input.mousePosition); transform.position = new Vector3(mousePos.x, mousePos.y, 0); }
4. 낙하하는 적 생성
- 적 오브젝트에 Rigidbody 2d, Collider를 적용하여 중력 및 충돌효과 주기.
- 무작위 위치 및 사이즈로 오브젝트 생성.
//square.cs void Start() { float x = Random.Range(-3f, 3f); float y = Random.Range(3f, 5f); transform.position = new Vector3(x, y, 0); float size = Random.Range(0.5f, 1.5f); transform.localScale = new Vector3(size, size, 0); }
- InvokeRepeating 함수를 사용하여 0.5초 마다 적을 생성하는 makeSquare() 함수 실행.
//gameManager.cs void Start() { InvokeRepeating("makeSquare", 0.0f, 0.5f); } void makeSquare() { Instantiate(square); }
5. 시간 증가 타이머
- 현재 시간을 나타내는 alive 변수 선언 후 deltatime를 증가시켜 타이머 생성.
//gameManager.cs public Text timeTxt; float alive = 0f; void Update() { alive += Time.deltaTime; timeTxt.text = alive.ToString("N2"); //시간 UI와 연동 }
6. 게임 종료 및 재시작
- 게임 종료 판넬 UI 제작 후 비활성화
- gameManager 싱글톤 처리를 통해 하나뿐인 인스턴스가 전역 접근이 가능하게 세팅
//gameManager.cs public static gameManager I; void Awake() { I = this; }
- public 변수 endPanel이 gameOver()함수가 실행되었을 때 활성화.
- gameOver() 함수가 실행되었을 때 timeScaled을 0.0f로 세팅.
//gameManager.cs public GameObject endPanel; public void gameOver() { Time.timeScale = 0.0f; endPanel.SetActive(true); }
- OncollisionEnter 함수를 사용하여 "balloon" 태그인 오브젝트와 충돌하였을 때 gameOver() 함수 실행.
//square.cs private void OnCollisionEnter2D(Collision2D collision) { if (collision.gameObject.tag == "balloon") { gameManager.I.gameOver(); } }
- 현재 스코어 변수가 현재 시간인 alive 값과 동일하게 하고 함수 실행 시 나타나게 하기.
//gameManager.cs public Text thisScoreText; public void gameOver() { Time.timeScale = 0.0f; thisScoreText.text = alive.ToString("N2"); endPanel.SetActive(true); }
- Update()함수와 gameOver()함수 간의 시간차 제어.
- bool 변수 isRunning이 true일 경우 시간 계속 증가.
- gameOver()이 호출될 때 isRunning = false로 설정.
//gameManager.cs bool is Running = true; void Update() { if (isRunning) { alive +=Time.deltaTime; timeText.text = alive.ToString("N2"); } } public void gameOver() { isRunning = false; //... }
- Start() 에서의 시간값을 1.0f로 세팅.
- 다시하기 버튼에 메인 씬을 로드하는 retry()함수 세팅.
//gameManager.cs using UnityEngine.SceneManagement; void Start() { Time.timeScale = 1.0f; //... } public void retry() { SceneManager.LoadScene("MainScene"); }
7. 최고 점수 나타내기
- Haskey 확인 시 bestScore 값이 없을 때, bestScore 값을 현재 점수인 alive 값으로 설정.
- bestScore 값이 존재하고 만약 alive 값이 기존 bestScore보다 크다면 alive 값을 bestScore로 설정.
- UI 오브젝트 변수 bestScoreText를 bestScore값으로 나타내기.
- PlayerPrefs 클래스는 데이터의 저장, 불러오기, 삭제 등에 사용됨. 간단하지만 보안이 취약하다는 단점 존재.
- DeleteAll : 모든 키 값을 삭제
- DeleteKey : 특정 키 값을 삭제
- HasKey : 해당 키가 존재하는 여부를 반환(true/false)
- Save : 변경된 모든 키 값을 물리적 저장공간에 저장
- GetFloat : 지정한 float 타입 키 값 불러오기
- GetInt : 지정한 int 타입 키 값 불러오기
- GetString : 지정한 string 타입 키 값 불러오기
- SetFloat : 지정한 float 타입 키 값 저장
- SetInt : 지정한 int 타입 키 값 저장
- SetString : 지정한 string 타입 키 값 저장
//gameManager.cs public Text bestScoreText; public void gameOver() { //... if (PlayerPrefs.HasKey("bestscore") == false) { PlayerPrefs.SetFloat("bestscore", alive); } else { if(alive > PlayerPrefs.GetFloat("bestscore")) { PlayerPrefs.SetFloat("bestscore", alive); } } float bestScore = PlayerPrefs.GetFloat("bestscore"); bestScoreText.text = bestScore.ToString("N2"); }

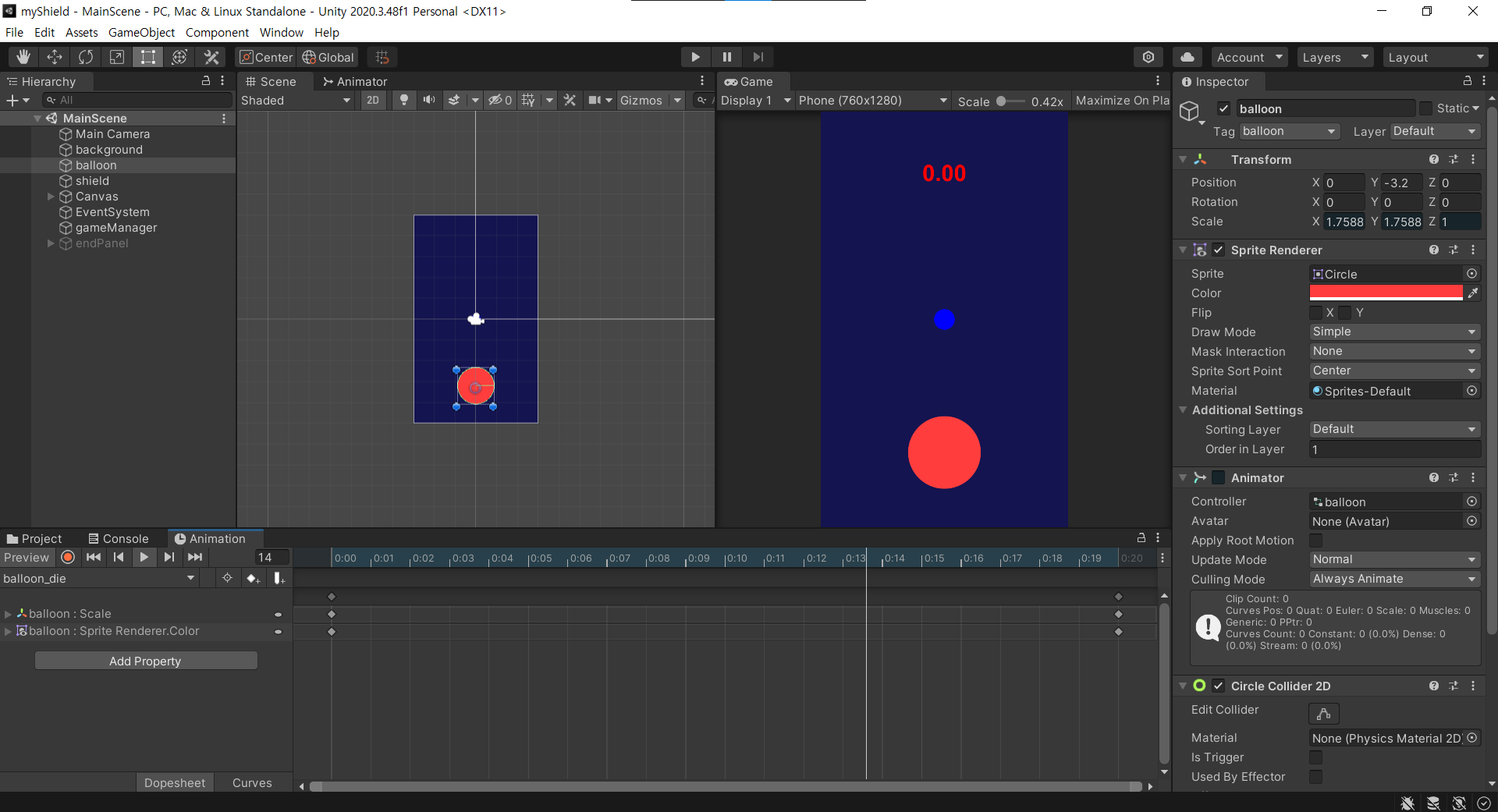

8. 게임 오버 풍선 애니메이션
- balloon_die 애니메이션 만들고 레코드하여 새 클립 생성.
- balloon animator 에서 bool 형식의 isDie 파라미터 생성 후 balloon_idle 에서 balloon_die로 transition 만들기.
- has exit time 체크 해제하여 애니메이션 즉시 전환.
- public 변수 anim 선언 후 gameOver() 함수 실행 시 isDie 파라미터가 true로 되게 하기.
- Invoke 함수를 사용하여 0.5초 후에 timeStop() 함수 실행(애니메이션이 실행되는 틈을 주기 위해 사용).
//gameManager.cs public Animator anim; public void gameOver() { anim.SetBool("isDie", true); Invoke("timeStop", 0.5f); //... } void timeStop() { Time.timeScale = 0.0f; }
9. 적이 화면 밖으로 나갔을 시 파괴
- 적 오브젝트의 position 값이 -5.0f 보다 작아서 화면 밖으로 나갔을 시 사라지게 하기.
//square.cs void Update() { if (transform.position.y < -5.0f) { Destroy(gameObject); } }
10. 결과물
